Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm

Product Categories
Jinan Shine International Trade Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

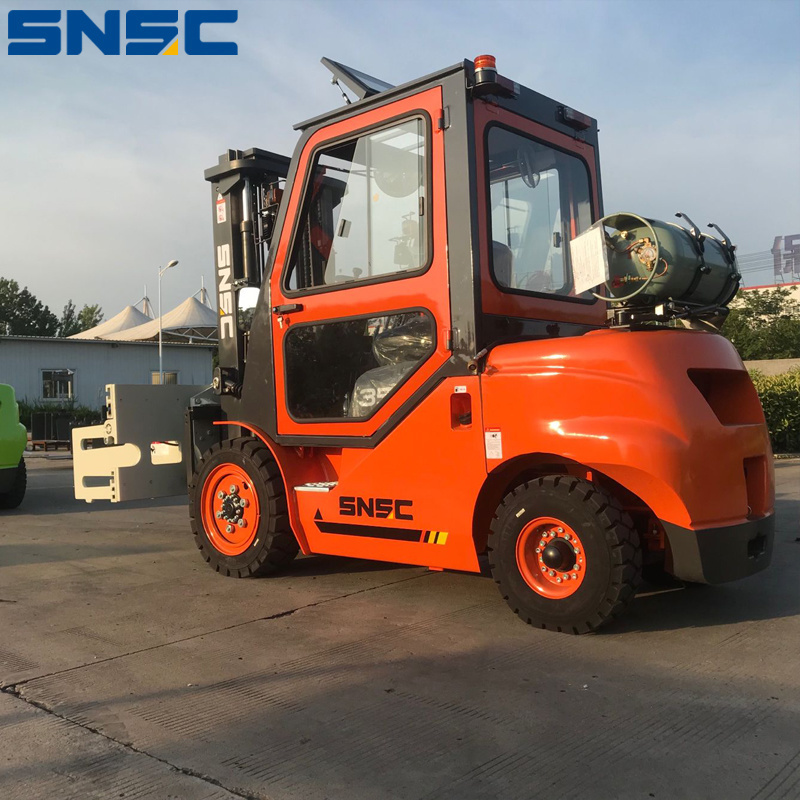

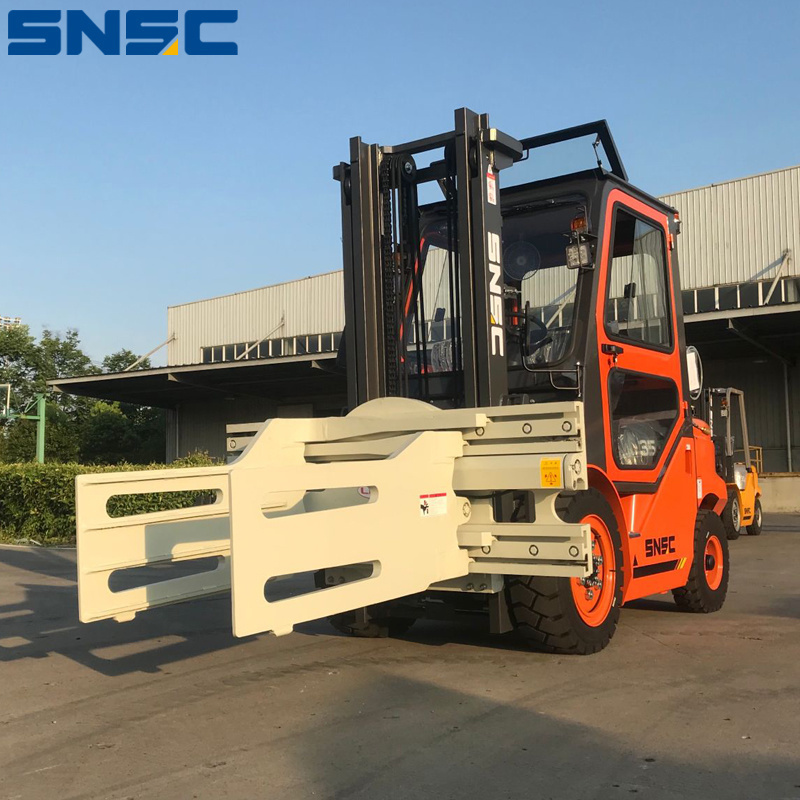

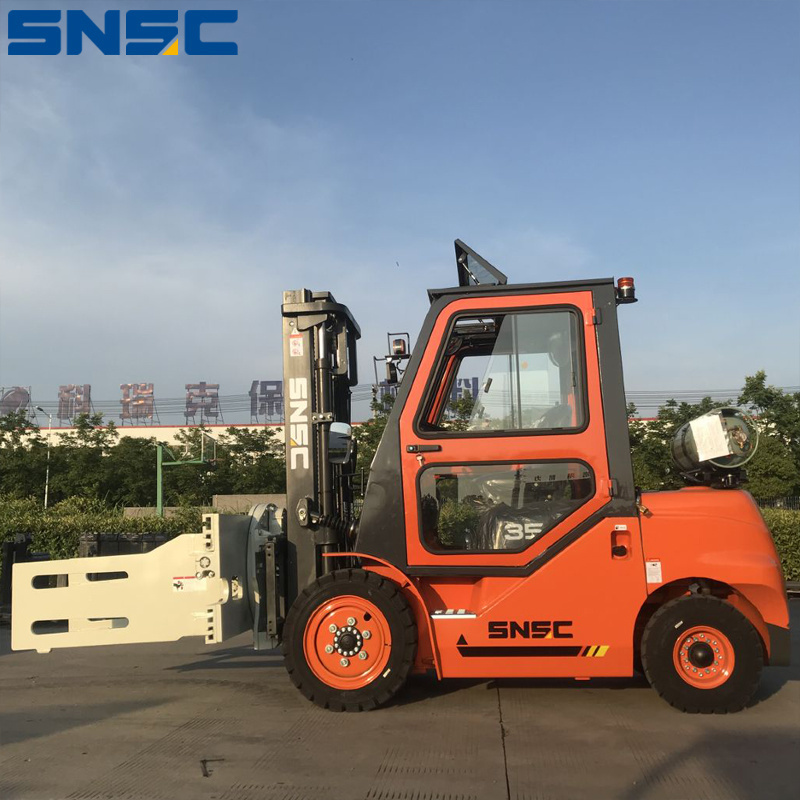

Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm

Model NO. : FL35

Lift height : 3000~5000mm

Condition : New

Free Lifting Height : 145mm

Fork Size : 1070*125*50mm

Mast Tilt Angle : 6/12 Degree

Min. Ground Clearance : 120mm

Overhead Guard Height : 2090mm

Front Overhang : 475mm

The Turning Radius : 2430mm

Transport Package : Nude Package

Trademark : SNSC

Origin : China

HS Code : 84270290

Supply Ability : 500/Months

Cab Location : Not Adjustable

Type : LPG Forklift

Power : LP Gas Engine

Load Capacity : 1T - 5T

Fuel : Gasoline

Load center : 500mm

Customization : Available | Customized Request

Place of Origin : china

Brand Name : snsc

Certification : CE/ISO

MOQ : 1 unit

Price : negotiable

Packaging Details : shipped by container

Delivery Time : 30-45 Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

China LP gasoline forklift trucks machine warehouse forklift hot sale fork lift

Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm
Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm
Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm
Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm
Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm

Details:
Japan NISSAN K25 Engine;
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);
Standard 2-stage 3m mast;
Electric Hydraulic Automatic Transmission by TCM technology;
Lamp protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Standard Pneumatic Tires

Common Options:
Solid Tires;
3m-7m duplex or triplex full free mast;

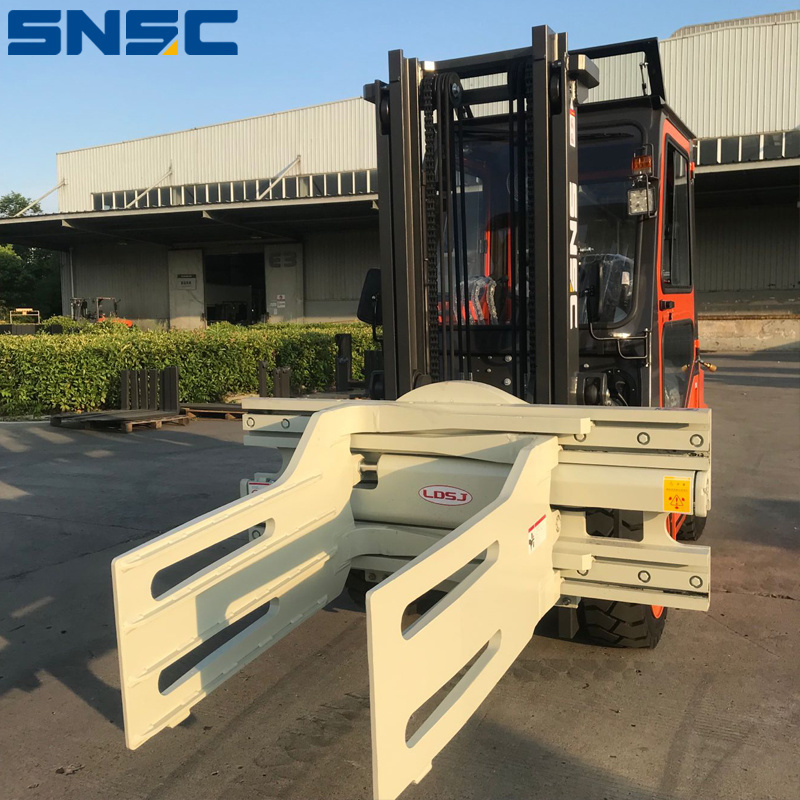

Attachments such as paper roll clamp, block clamp, bale clamp, bucket, etc;
Fully closed cabin with heater or air conditioner;
Side shifter and fork positioner;
Fully suspension luxury seat;
Double filter;
High exhaust;
Customized color except green, red and orange.

Specifications:
Specifications Unit FL35
Features Power type LP/Gasoline
Rated load kg 3500
Load center mm 500
Lifting height mm 3000
Free lifting height mm 145
Fork size L*W*T mm 1070*125*50
Mast tilt angle Front/Rear . 6/12
Min. turning radius mm 2430
Min.ground clearance Mast mm 120
Overhead guard height mm 2090
Front overhang mm 475
Performance Max. travelling speed loaded km/h 20
Max. lifting speed loaded mm/s 410
Max. traction force loaded KN 18
Max. climbing ability % 20
Dimension Overall length without fork mm 2725
Overall width mm 1230
Mast lowered height mm 2095
Mast extended height mm 4265
Chassis Tyre Front 28*9-15-12PR
Rear 6.50-10-10PR
Wheel base mm 1700
Wheel thread Front/Rear mm 1000/970
Weight(without load) kg 4850
Powertrain Battery V/AH 12/90
Engine Model nissan K25
Rated power km/r.p.m 37.4/2300
Rated torque Nm/r.p.m 176.5/1600
No. cylinder 4
Bore x stroke mm 89X100
Displacement L 2.488
Fuel tank capacity L 70
Transmission/shift 1/1 automatic transmission
Operation pressure Mpa 17.5

Details of 3.5Ton LPG Forklift FL35

Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm
3.5Ton LPG Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast
Cetifications:
Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
Customizable Lp Gasoline Forklift Trucks with Japan Engine and Lift Height 3000-5000mm

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
