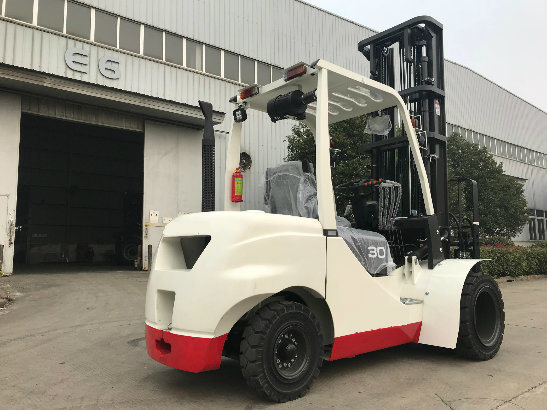

500mm Load Center 3ton Diesel Forklift with Double Front Tires and LED Light Options

Jinan Shine International Trade Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

500mm Load Center 3ton Diesel Forklift with Double Front Tires and LED Light Options

Model NO. : FD30

Lift height : 3000mm-6000mm

Condition : New

Engine : China/Japan for Choice

Mast : Duplex/Full Free Lift Mast

Options : LED Light, Lux Seat, Fan, Solid Tire Ect

Transmission : Automatic Transmission

Attachements : Side Shifter, Clamps, Positioner Ect

Color : Customer Customzied

Transport Package : Container Shipment

Specification : 4250kg

Trademark : SNSC

Origin : China, Wuhu

HS Code : 84272090

Supply Ability : 500/Months

Cab Location : Adjustable

Type : Ordinary Combustion Forklift

Power : Diesel Engine

Load Capacity : 1T - 5T

Fuel : Diesel

Load center : >500mm

Customization : Available | Customized Request

Place of Origin : china

Brand Name : snsc

Certification : CE/ISO

MOQ : 1 unit

Price : negotiable

Packaging Details : shipped by container

Delivery Time : 30-45 Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

FORKLIFT SPCIFICATIONS
500mm Load Center 3ton Diesel Forklift with Double Front Tires and LED Light Options
3Ton Diesel Forklift main configuration:
1) with powerful Chinese XINCHAI 490/ original JAPAN ISUZU C240/MITSUBISHI S4S engine;
2) with auto electric hydraulic transmission by finger with TCM technology;
3) with japanese hydraulic system, like japan shimadzu brand pump and valves;
4) with USA EATON brand steering gear;
5)with 3000mm-6000mm lifting height;
with copper radiator, Wide back mirroe/Led light/Warning lights/Luxury waist support seat/

Cooper tank/ Lamp shade protection frame /Ramjet overhead guard/ /Tilt cylinder dust shield;
6) with a tool box and free spare parts;
7) with CE, ISO, GHOST certificates, quality is guaranteed.

Specifications Unit FD30
1 Characteristics Power diesel
2 Rated Capacity kg 3000
3 Center of load mm 500
4 Lifting height mm 3000
5 Free lifting height mm 145
6 Forks L×W×H mm 1070×125×45
7 Tilt Forward/Backward . 6/12
8 Min.turning radius mm 2600
9 Min.ground clearance(Mast) mm 120
10 Overhead guard height mm 2170
11 Height from seat to overhead guard mm 480
12 Front overhang mm 545
13 Perf Max.traveling speed(loaded) km/h 20
14 Max.lifting speed(loaded/empty) mm/s 470/520
15 Drawbar pull/Gradeability kN/% 18/20
16 Dimensions Overall length (without fork) mm 2825
17 Overall width mm 1230
18 Mast lowered height mm 2065
19 Mast extended height mm 4260
20 Chassis Tire Front 28×9-15-12PR
21 Rear 6.50-10-10PR
22 Wheelbase mm 1800
23 Tread width Front/Rear mm 1000/970
24 Curb weight None-load kg 4250
25 Powertrain Battery Voltage/Capacity V/Ah 12/90
26 Engine Model QC490GP
27 Rated power kw/r.p.m 39/2650
28 Rated torque Nm/r.p.m 157/1980
29 Cylinder amount 4
30 Bore×Stroke mm 90×105
31 Displacement 2.67
32 Fuel tank L 70
33 Transmission 1/1 automatic transmission
34 Working pressure MPa 17.5

OUR COMPANY
500mm Load Center 3ton Diesel Forklift with Double Front Tires and LED Light Options

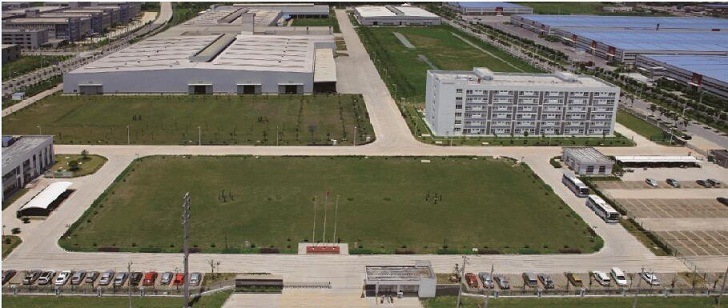

We are first calss in Chinese forklift manufactures and top 20 in the world,with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume

Our R&D research is in Britain, and we invested over 600 million in fork lifter factory, use advanced equipments to realize over 90% automatic production, e.g.: welding robot.

Every forklift part is self produced; we have 5 series and over 200 models to meet customers' different demands, we can do all kinds of lifting height mast according your different working conditions

OUR PRODUCTS
500mm Load Center 3ton Diesel Forklift with Double Front Tires and LED Light Options

I. Diesel forklift range from 1.5 to 16tons;(FD15/18/20/25/30/35/40/45/50/60/70/80/100/160)
II. Battery forklift range from 1.5 to 3.5tons;(FB15/20/25/30/35)
III.LPG and gasoline forklift range from 1.5 to 3.5 ton;(FL15/20/25/30/35)
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)

OUR CERTIFICATIONS
Our all kinds of forklift forsale has passed all kinds of international certificates, eg:Russian Gost certificates or European CE(EC) certificates, especially, our CE certificates are made in Turkey. Quality is guaranteed and performance stable.

OUR SERVICES

WARRANTY TIME:
The warranty period for forklift is 12 months or 2000 working hours begins from the forklift arrival date of oversea port, depends on which come first.

SPARE PARTS SERVICE:
We have free wearing parts to present you with the forklift.
Warranty period of Spare parts is 6 months, begins from 30 days after shipment.

MAINTENANCE SERVICE
Our products are all well-designed and strictly tested. If any maintenance problem you can not handle, we can also offer training and maintenance services in our factory field or at your site.Your requirements will be handled promptly and appropriately.

OUR MAITRMANCE PLAN
Mandatory maintance time The first mandatory maintance The second mandatory maintance The third mandatory maintance The fourth mandatory maintance The fifth mandatory maintance The sixth mandatory maintance
Running time 50hours 200 hours 500 hours 800 hours 1100 hours 1400 hours

OUR QUALITY CONTROL

We use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.Every forklift part is produced by ourselves, our products are all well-designed and strictly tested, We traite every process from prepare materials- structure-painting-assambly to delivery to make customer's satisfaction.

PRODUCT DESCRPTIONS

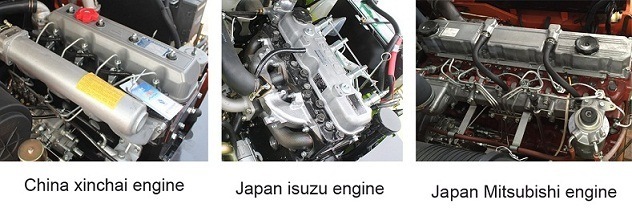

Japan ISUZU engine for your choice
3tons diesel forklift adapts china engine, optional Japan engine, eg: Imported ISUZU brand/ Yanmar / Kubota/ Perkins/ Mitsubishi engine for your choosing, Stable quality and reliable performance. you can get spare parts in oversea market easily. 500mm Load Center 3ton Diesel Forklift with Double Front Tires and LED Light Options
Automatic hydraulic Transmission
3tons diesel forklift uses automatic transimission with finger, make your work very comfortable and efficient.
If you like hand transmission or mechanical transmission, price will be much more competitive.
Japan shimadzu Hydraulic System & USA Eaton Redirector
we use Japan shimadzu hydraulic system and USA Eaton Redirector to 3tons diesel forklift , to guarantee forklift performance more stable and reliable.

What's more, spare parts are available in oversea markets.
Different mast &lifting height for 3ton diesel forklift
Our 3ton diesel forklift used standard 3000mm lifting height duplex mast.
But we can also do different lifting height mast according customers' different working condition, eg: 3m duplex standard mast/ 4.5m duplex full free mast/ 6m triplex full free mast and others. Our mast lifting height capacity from 3m to 7m for customers choosing.

PACKAGE AND DELIVERY
500mm Load Center 3ton Diesel Forklift with Double Front Tires and LED Light Options

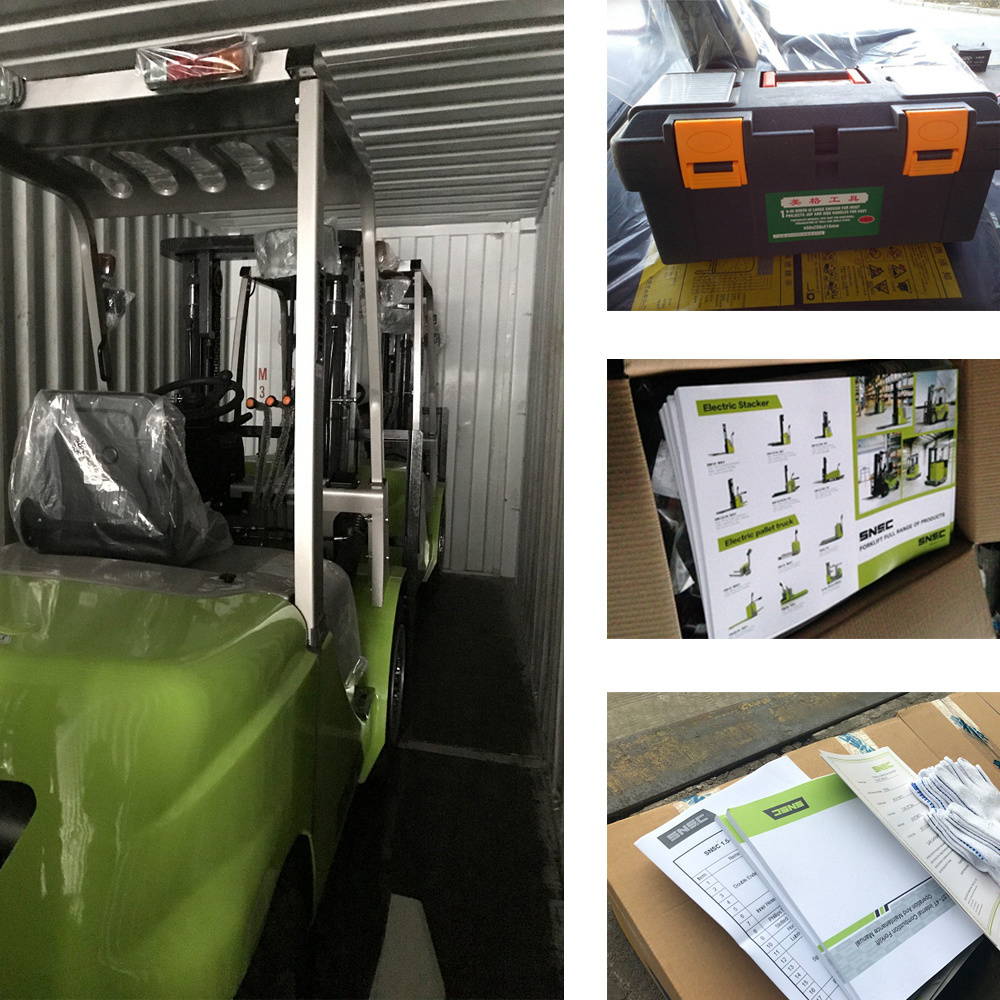

3ton diesel forklift use Container Package or RO-RO.Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping 1*20'GP - 2 Units, 1*40'GP - 4 Units
