3ton Diesel Montacargas Forklift Truck with Fan Option and Duplex/Full Free Lift Mast

Name: 3ton Diesel Montacargas Forklift Truck with Fan Option and DuplexFull Free Lift Mast
Brand: snsc
Price: 1 USD

China 3ton Diesel Montacargas Forklift Truck with Fan Option and Duplex/Full Free Lift Mast wholesale

Model NO. : FD30

Lift height : 3000mm-6000mm

Condition : New

Engine : China/Japan for Choice

Mast : Duplex/Full Free Lift Mast

Options : LED Light, Lux Seat, Fan, Solid Tire Ect

Transmission : Automatic Transmission

Attachements : Side Shifter, Clamps, Positioner Ect

Color : Customer Customzied

OEM : Yes

Transport Package : Container Shipment

Specification : 4250kg

Trademark : SNSC

Origin : China, Wuhu

HS Code : 84272090

Supply Ability : 500/Months

Cab Location : Adjustable

Type : Ordinary Combustion Forklift

Power : Diesel Engine

Load Capacity : 1T - 5T

Fuel : Diesel

Load center : >500mm

Customization : Available | Customized Request

Place of Origin : china

Brand Name : snsc

Certification : CE/ISO

MOQ : 1 unit

Price : negotiable

Packaging Details : shipped by container

Delivery Time : 30-45 Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

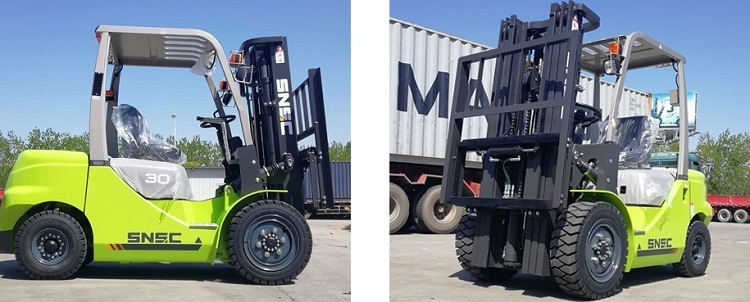

Snsc 3ton Diesel Forklift Truck

3ton Diesel Montacargas Forklift Truck with Fan Option and Duplex/Full Free Lift Mast

3 Ton Diesel Forklift Description:
1- Standard China XC490 engine, optional Japan Isuzu/Mitsubishi / Yanmar engine;
2-Auto ectric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
3- USA Eaton steering gear;
4- LED light& Protection , with long durability time;
5- Copper Radiator, with better heat radiation;
6- Red/yellow/green and all kinds of customized colors for your reference;
7- Standard duplex mast, optional 3M-7M duplex / triplex mast;

Specifications				Unit	FD30
1	Characteristics	Power			diesel
2		Rated Capacity		kg	3000
3		Center of load		mm	500
4		Lifting height		mm	3000
5		Free lifting height		mm	145
6		Forks L×W×H		mm	1070×125×45
7		Tilt Forward/Backward		.	6/12
8		Min.turning radius		mm	2600
9		Min.ground clearance(Mast)		mm	120
10		Overhead guard height		mm	2170
11		Height from seat to overhead guard		mm	480
12		Front overhang		mm	545
13	Perf	Max.traveling speed(loaded)		km/h	20
14		Max.lifting speed(loaded/empty)		mm/s	470/520
15		Drawbar pull/Gradeability		kN/%	18/20
16	Dimensions	Overall length (without fork)		mm	2825
17		Overall width		mm	1230
18		Mast lowered height		mm	2065
19		Mast extended height		mm	4260
20	Chassis	Tire	Front		28×9-15-12PR
21		Tire	Rear		6.50-10-10PR
22		Wheelbase		mm	1800
23		Tread width	Front/Rear	mm	1000/970
24		Curb weight	None-load	kg	4250
25	Powertrain	Battery	Voltage/Capacity	V/Ah	12/90
26		Engine	Model		QC490GP
27			Rated power	kw/r.p.m	39/2650
28			Rated torque	Nm/r.p.m	157/1980
29			Cylinder amount		4
30			Bore×Stroke	mm	90×105
31			Displacement		2.67
32		Fuel tank		L	70
33		Transmission			1/1 automatic transmission
34		Working pressure		MPa	17.5

OUR MAITRMANCE PLAN

Mandatory maintance time	The first mandatory maintance	The second mandatory maintance	The third mandatory maintance	The fourth mandatory maintance	The fifth mandatory maintance	The sixth mandatory maintance
Running time	50hours	200 hours	500 hours	800 hours	1100 hours	14

VIP SOLUTION

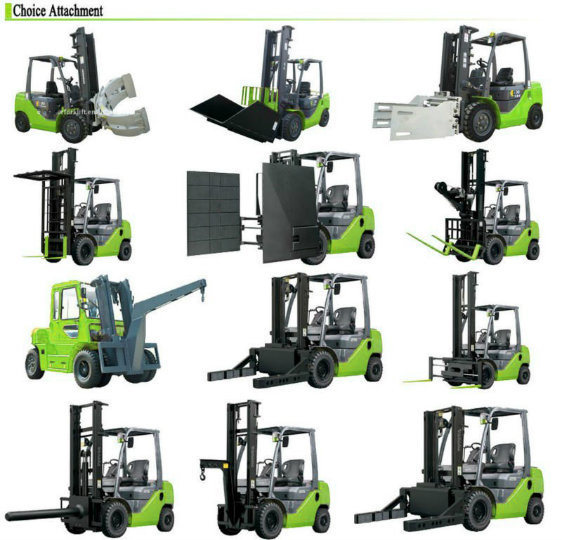

SNSC forklifters can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast, bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, etc.
3ton Diesel Montacargas Forklift Truck with Fan Option and Duplex/Full Free Lift Mast

PACKAGE AND DELIVERY

Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.
