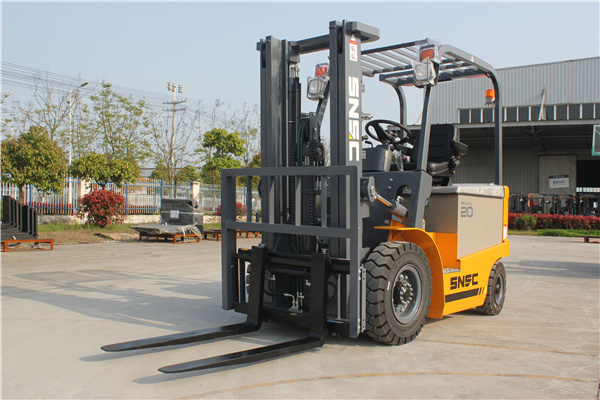

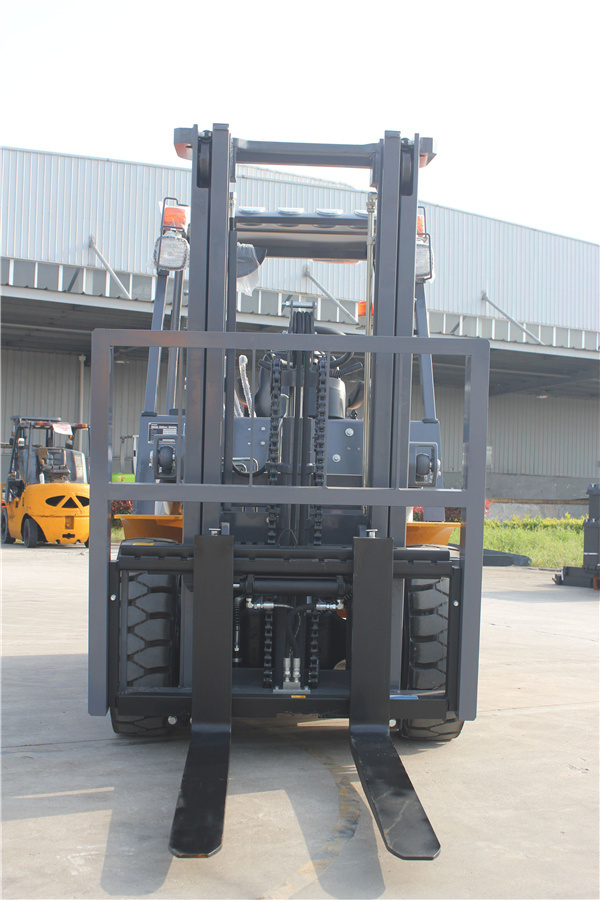

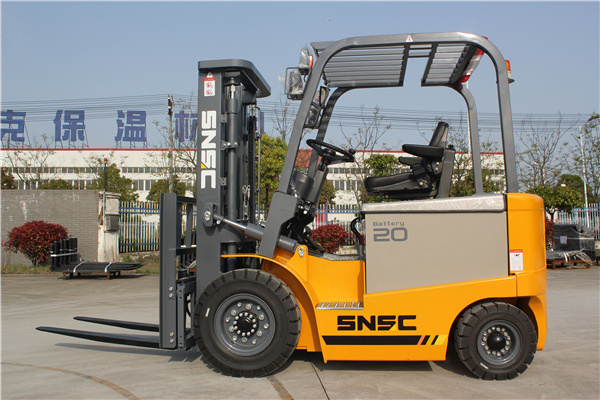

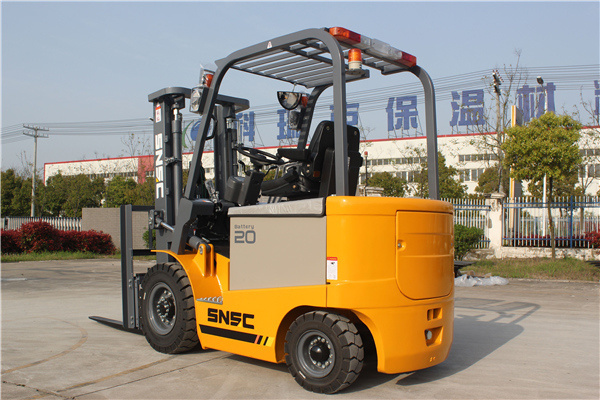

2 ton full electric forklift with AC motor
Description:
(1)AC motor makes forklift have longer working life and easy to maintenance;
(2)Auto electric hydraulic transmission by TCM technology,just use your finger can achieve the forklift's forward and backward;
(3)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(4)USA Eaton steering gear;
(5)The controller is USA CURTIS imported controller, more reliable and enjoy global after-sale service.
(6)Intelligent charger is included;
(7)Red/yellow/green colors for your reference.
Common Optionals:
German HOPPECKE battery,Side shifter,Solid tire,fork extension,Fork positioner.
Container Package Method:
2-2.5 ton electric forklift package:20GP container can hold 3 units,40GP container can hold 6 units;
| Specifications | Unit | FB25 |
| 1 | Characteristics | Power | - | battery |
| 2 | Capacity | kg | 2500 |
| 3 | Center of load | mm | 500 |
| 4 | Lifting height | mm | 3000 |
| 5 | Free lifting height | mm | 145 |
| 6 | Forks L×W×H | mm | 1070×122×40 |
| 7 | Mast tilt angle Forward/Backward | . | 6/12 |
| 8 | Min.turning radius | mm | 2090 |
| 9 | Min. right angle stacking width | mm | 3760 |
| 10 | Min. right angle Aisle width | mm | 2040 |
| 11 | Min.ground clearance | mm | 110 |
| 12 | Overhead guard height | mm | 2150 |
| 13 | Height from seat to overhead guard | mm | 1005 |
| 14 | Front overhang | mm | 470 |
| 15 | Performance | Max.traveling speed(loaded) | km/h | 13 |
| 16 | Max.lifting speed(loaded/unload) | mm/s | 270 | 300 |
| 17 | Gradeability | % | 15 |
| 18 | Dimensions | Overall length (without fork) | mm | 2310 |
| 19 | Overall width | mm | 1150 |
| 20 | Mast extended height(with bracket) | mm | 4030 |
| 21 | Mast lowered height | mm | 1990 |
| 22 | Chassis | Tire | Front | - | 7.00-12-12PR |
| 23 | Rear | - | 18×7-8-14PR |
| 24 | Wheelbase | mm | 1450 |
| 25 | Tread width | Front/Rear | mm | 960/950 |
| 26 | Curb weight | None-load | kg | 4050 |
| 27 | Powertrain | Battery | Voltage/Capacity | V/Ah | 48/630 |
| 28 | Motor | Traveling | KW | 11 |
| 29 | Lifting | KW | 14 |
| 30 | Controller | CURTIS |
| 31 | Control type | 100%AC |
| 32 | Working pressure | Mpa | 17.5 |
